Especificaciones para Trailer Caja Seca De 100 5 Pulgadas

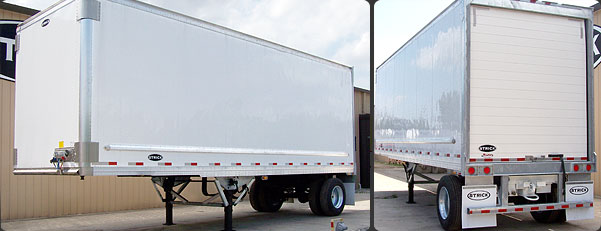

Trailer Nuevo Fabricado por Strick Trailers en USA.
23-5-straight-frame-container-chassis










Overall Trailer Dimensions 28′ long x 13’6″ high x 102.36″(2.6 meter) wide
Fifth Wheel Height 47-1/2″
Internal Trailer Dimensions Height at Front: 110″
Height at Rear: 110″
Inside Width: 100-1/2″ at post
Inside Length: 27′ 6-3/4″
Door Opening Dimensions Opening Height: 107″
Opening Width: 98-5/16″
Dock Height 50″±1/2″
Front Panel .040″ thick pre-painted white aluminum sheets with five (5) 1 5/16” deep galvanized steel hat-shape posts. Extruded aluminum 4″ radius corner panels. Aluminum three-piece front top rail with 4″ radius corner castings. Sheets fastened to posts with one (1) row of solid 3/16″ rivets on 2″ centers at seams and 4″ centers at intermediate locations. Foam sealing tape at all sheet seams.
Side Panels .048″ thick pre-painted white aluminum sheets with .625” deep logistic A-slotted galvanized steel hat shape posts on 24” centers. Extra posts over kingpin and landing gear area. Sheets fastened to posts with one (1) row of solid 3/16″ rivets on 2″ centers at seams and 4″ centers at intermediate locations. Foam sealing tape at all sheet seams.
Bottom Rails 8-3/4″ deep heavy extruded aluminum alloy 6061-T6 with floor sealing lip.
Top Rails 5-9/16″ deep heavy duty extruded aluminum alloy 6061-T6.
Kingpin Structure 3-1/8″ deep steel structure automatically welded. AAR tested and certified. 5/16″ thick formed channels welded to 5/16″ thick steel bottom plate. 1/4″ thick by full width front pick-up plate. Kingpin is of crosshead design located 36″ back from front. Front wrap is shotblasted, primed, painted white and oven baked prior to installation. Strick uses a zinc epoxy primer with urethane top coat.
Landing Gear Jost #A401, two-speed, low profile cushion foot sandshoes, inboard mounted with sixteen (16) 5/8″ diameter bolts to a formed steel mounting gusset spanning five (5) crossmembers. Fabricated angle bracing – fore, aft, leg-to-leg, and leg to cross brace. Located 141-7/16″ back from front. Roadside crank handle painted.
Floor 1-3/8″ nominal laminated hardwood flooring, pre-undercoated. Shiplap joints with crusher bead between floor board joints. Three (3) 5/16″ diameter torx head screws per each inner board and two (2) 5/16″ screws in each edge board.
Crossmembers 4″ hot rolled steel ‘I’ beam on 12″ centers throughout. Steel end clips are pre-welded to crossmember ends. Crossmembers are coated with corrosion resistance copolymer prior to installation. Steel clip is separated by plastic tape from the aluminum bottom rail to prevent electrolysis. Crossmembers attached with four (4) 3/8″ diameter solid rivets on each end.
Air & Electrical Lines A split wire harness body ground system incorporates a modular PVC encased 14 ga. copper wiring, 12 volt system. Terminates on roadside of front panel with 7-way ATA receptacle and fixed gladhands. Quick release style gladhand on blue service line. Air and electrical lines are run externally on front. Synflex air lines and electrical harness are routed along bottom rail above the crossmembers.
Roof .040″ thick one-piece tensioned aluminum sheet. Full length aluminum edge strips rolled over top rail leg in rivet area. All fasteners outside of cargo area.
Roof Bows One-piece 3/4″ deep galvanized 16GA steel “spring type” on 24″ centers connected with two (2) huck bolts at ends and adhesive tape to roof sheet
Rear Frame High tensile steel sections, fixture built, all welded construction. Protection from dock abuse is afforded through the sill section which recesses the lights within the sill. Heavy duty ICC bumper features bolt-on perforated bumper tube with vertical gussets and ‘K’ bracing bolted to suspension structure and rear frame. Bumper conforms to federal standards. Rubber dock bumpers installed between stop/tail/turn lights. Entire assembly is hot dipped galvanized.
Rear Doors 3/4″ overhead door pre-painted white
Front Lining 1/2″ thick structure wood installed full height, horizontally.
Front Scuff Non-galvanized 7GA X 12″ high flat steel scuff
Side Lining HDPE, snap in/snap out type, installed vertically between posts above scuff liner. No lining fasteners.
Side Scuff 18 ga. x 10″ high galvanized corrugated 80psi steel with 1/4″ deep ribs fastened directly to posts.
Crashplate 15″ smooth galvanized steel.
Lighting Conforms to FMVSS #108 and all D.O.T. requirements. All lights Truck Lite LED.
Suspension Holland CBX20 air ride
Axles 5.75″ round with 16-1/2″ x 7″ ‘S’ cam brakes. Quick change non-asbestos lining. ArvinMeritor automatic slack adjusters.
Brakes ‘ABS’ 2S/1M without external diagnostic cable
Chambers Ranger type 30/30
Oil Seals Stemco seals and caps with oil bath wheel bearing lubrication.
Hub & Drums 10-stud hub piloted with outboard mounted cast drums.
Wheels 22.5 x 8.25 hub piloted steel disc pre-painted white with #TR-572 valve stems.
Tires 295/75R22.5 low profile radial.
Mudflaps Strick, white mounted behind tires in conformance with regulations.
Conspicuity Tape Full length both sides, across bottom of rear doors and full width of bumper cross tube per federal regulations. Reflexite is standard.
FHWA Safety inspection and decal installed on front.
Undercoating To insure top-quality corrosion resistance the understructure, kingpin, landing gear, and running gear are sprayed with ‘BLACK’ undercoating. Floor boards and crossmembers are purchased with corrosion resistance copolymer applied.
