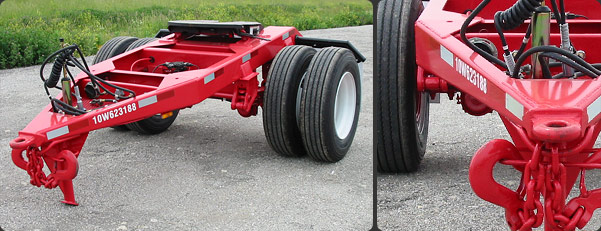

Especificaciones para Dolly Nuevo De Un Eje
Trailer Nuevo Fabricado por Strick Trailers en USA.
| Fifth Wheel Height | 47-1/2″ |
| Fifth Wheel Model | Fontaine |
| Fifth Wheel Location | 1″ ahead of axle |
| Drawbar Eye | 2-3/8″ |
| Drawbar Height | 34″ |
| Drawbar eye to 5th wheel | 74″ center to center |
| Tire Size | 295/75R 22.5 |
| Drawbar support | Stiff leg at front |
| Chassis A Frame | Formed channel |
| Counter balance | At rear |
| Rear support | Stiff leg at rear |
| Suspension | Hutch single axle |
| Springs | 2-leaf |
| Axle | 1/2″ wall |
| Brakes | 16.5 x 7 “Q” type |
| Brake lining | MA-212 |
| Slack Adjuster | Auto |
| Brake Chambers | 30/30 |
| Disc wheels | 22.5 x 8.25 |
| Brakes | ABS 2S/1M |
| Jumper Harness | (2) Coiled type |
| Electrical | (2) 7-way split pin |
| Lights | Incandescent |
| Safety Chain | .75″ Certified for triples |
